ESPNTPServer
GPS fueled ESP8266 based NTP Server
ESPNTPServer Contains the code for the NTP Server. I used Eclipse with an Arduino plugin for development. If you want to use the Arduino IDE then create an empty file named ESPNTPServer.ino
hardware contains the esp8266 arduino core version used as a git submodule
libraries has all needed libraries as git submodules

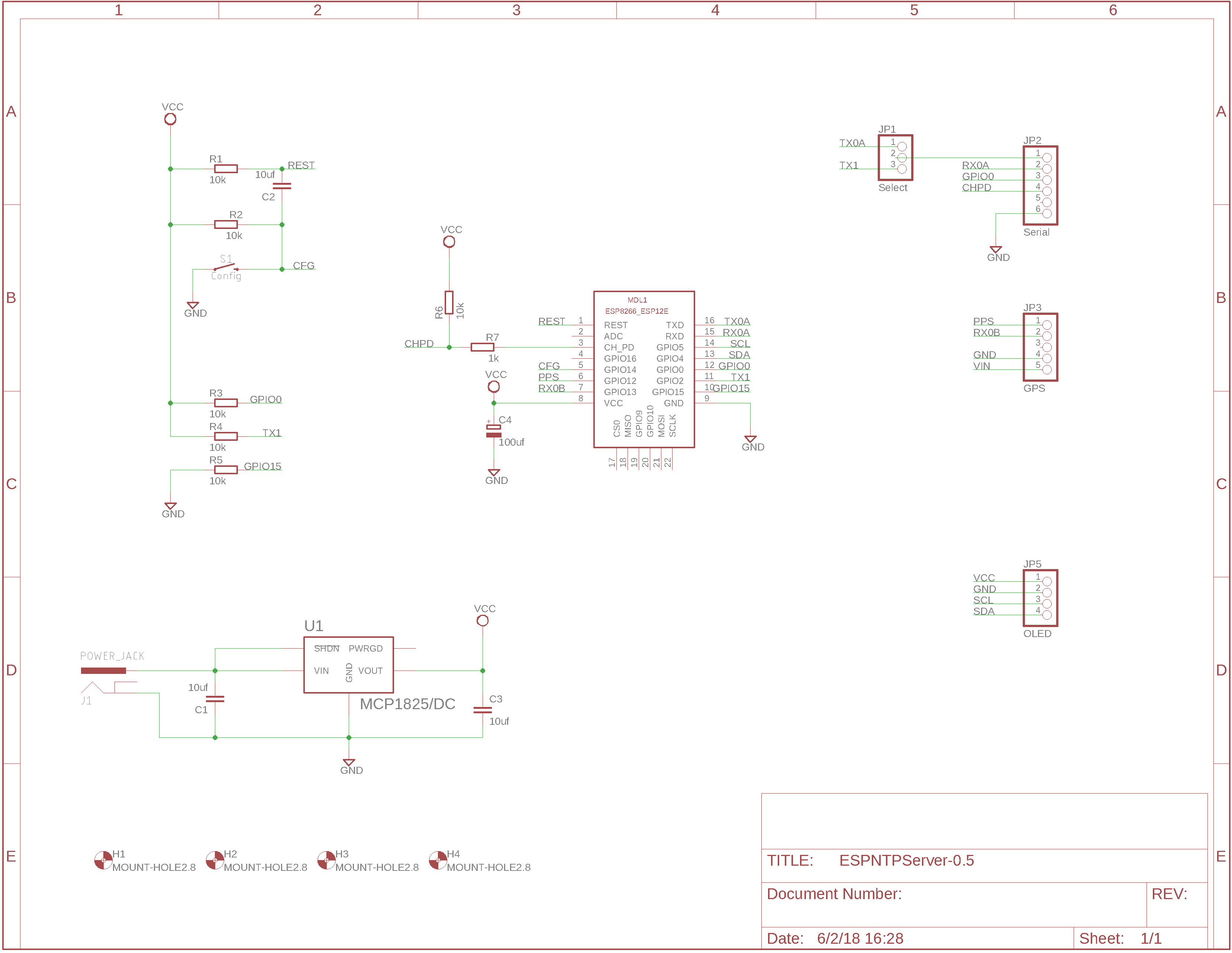

eagle contains the schematic and board designs in Eagle cad.
enclosure contains the STL files for the enclosure.
This is designed around this GPS module but any module with standard NMEA output and a pult per second signal will work if you redesign the board or use an adapter.
I also used this display module. You can use others but be careful with the power polarity, I have modules where VCC and ground pins are in a different order.
